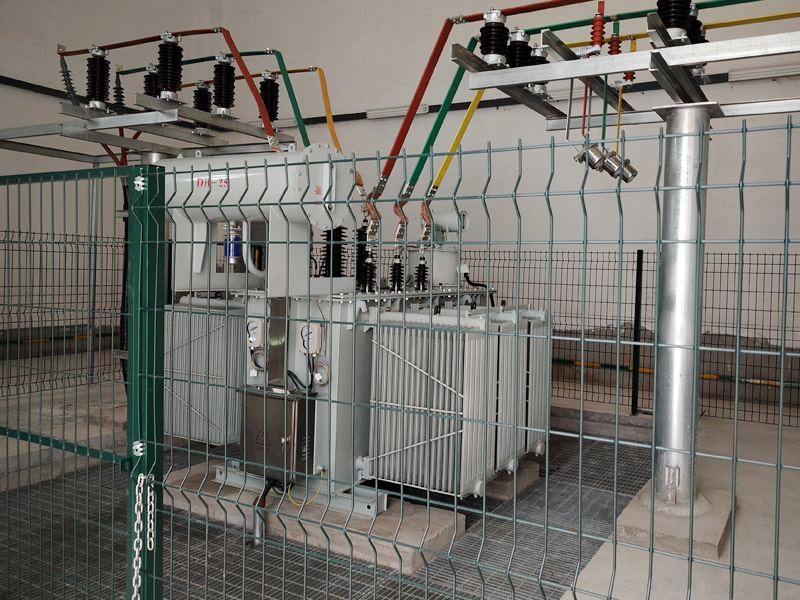

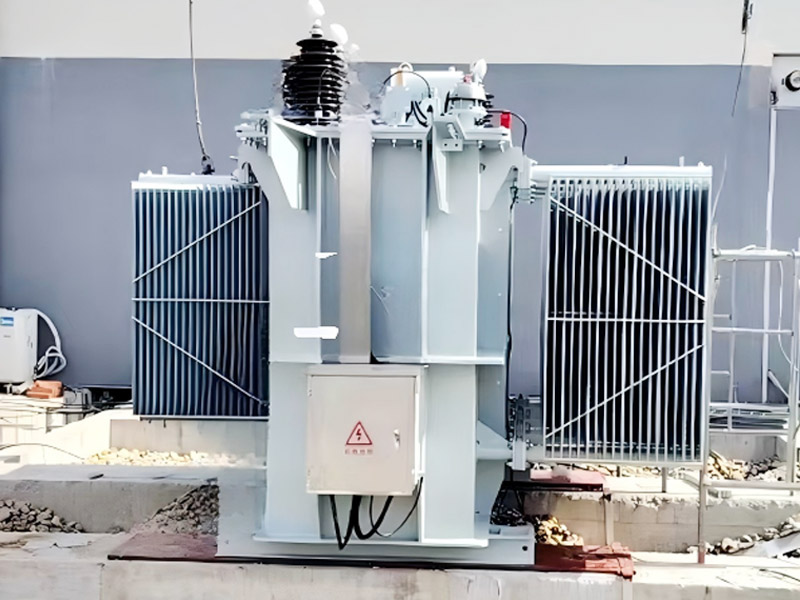

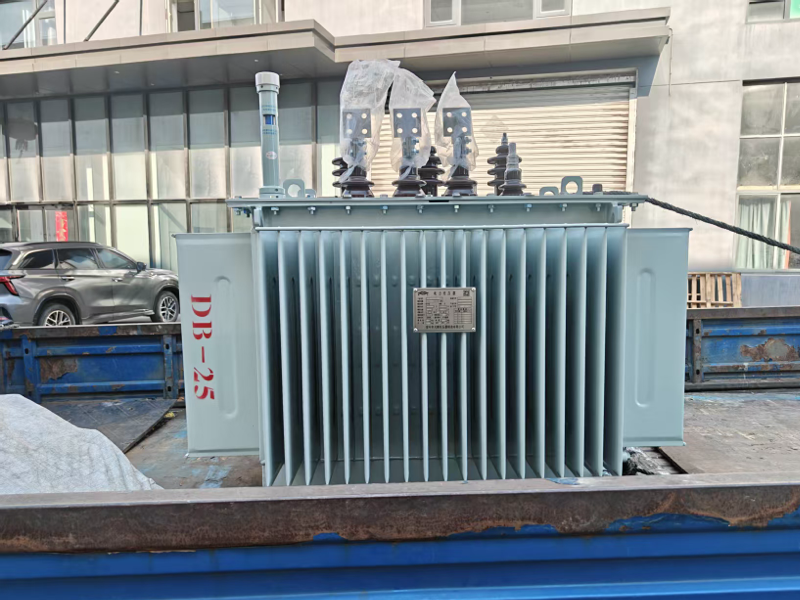

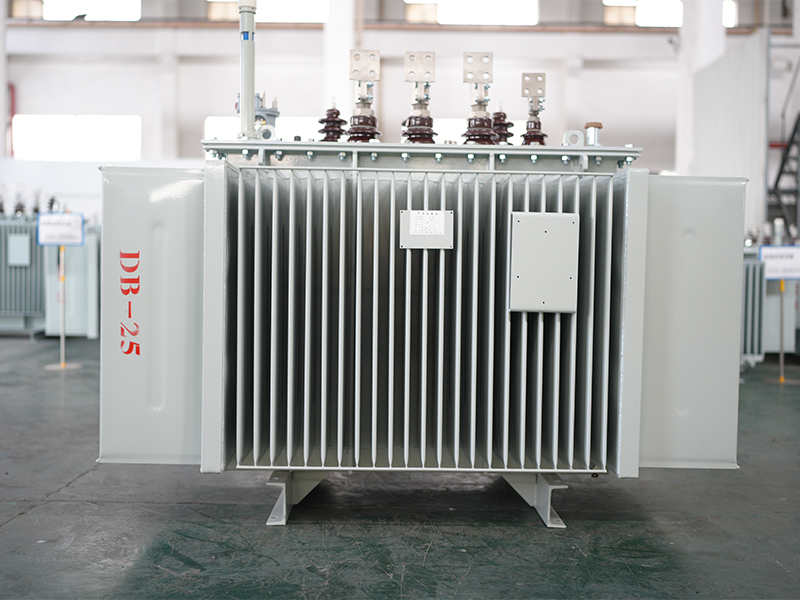

The 300kva oil immersed transformer is a core piece of equipment for small and medium-capacity power distribution. Utilizing high-quality transformer oil as the insulation and cooling medium, it features stable heat dissipation and robust overload capabilities. Our 300kva oil immersed transformer is ideal for outdoor small substations, SME industrial parks, rural grid upgrades, and flexible installation scenarios requiring reliable power.

Core Parameters:

• Energy Efficiency: Tier 2 Efficiency (Complies with GB 20052-2024).

• Maintenance: Periodic Maintenance Design.

• Warranty: 3-Year Standard Warranty.

The 500 kva oil filled transformer is a core piece of equipment for medium-capacity power distribution. Utilizing high-quality transformer oil as the insulation and cooling medium, it features excellent heat dissipation performance and stable overload capabilities. This 500 kva oil filled transformer is suitable for outdoor substations, medium-sized industrial park power distribution, urban distribution network upgrades, large commercial complexes, and medium-sized industrial enterprises that have higher requirements for power supply stability and medium power loads. It can operate stably for a long time in complex climatic environments ranging from -30℃ to 40℃, meeting the needs of medium-scale power transmission and distribution.

Core Parameters:

• Energy Efficiency: Tier 2 Efficiency (Complies with GB 20052-2024 "Minimum Allowable Values of Energy Efficiency and Energy Efficiency Grades for Power Transformers").

• Maintenance Features: Periodic Maintenance Design (requires periodic testing of transformer oil quality and sealing performance to extend equipment service life).

• Warranty Period: 3-Year Warranty (covers fault repair and replacement of core components, safeguarding users' long-term usage rights).

Our single-phase transformers are designed for standard step-down and step-up voltage conversions. Available in both dry-type and oil-immersed configurations, they are widely applicable for industrial and civil isolation and decentralized power distribution scenarios.

Core Parameters:

• Phase / Frequency: Single-phase / 50Hz

• Capacity Range: 10kVA - 500kVA

• Vector Group: I/I0

The S13-M.RL series utilizes an innovative 3D triangular wound core design. Constructed from high magnetic grain-oriented silicon steel with a jointless structure and vacuum annealed processing, it significantly enhances energy efficiency. It drastically lowers no-load loss, current, and operating noise compared to traditional laminated core models.

Core Parameters:

• Rated Voltage: 10kV±5% / 0.4kV

• Capacity Range: 30kVA - 2500kVA

• Vector Group: Dyn11 (Standard)

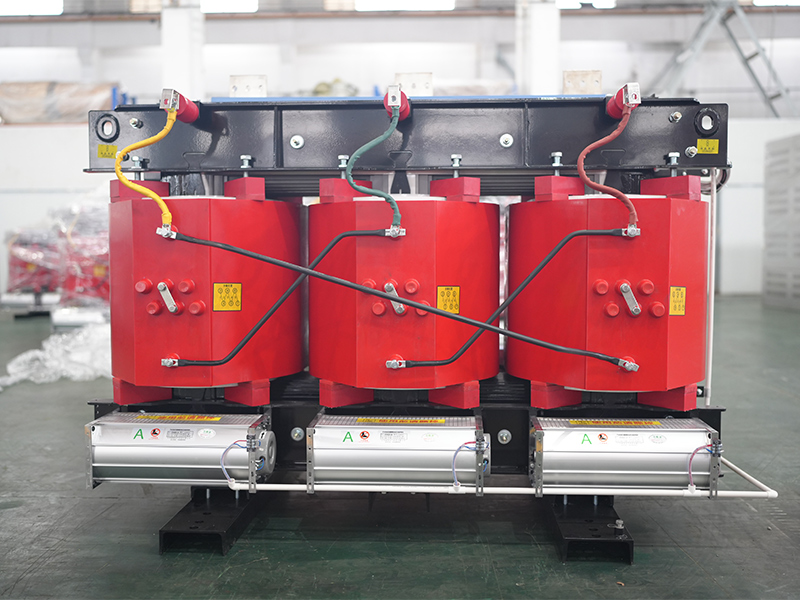

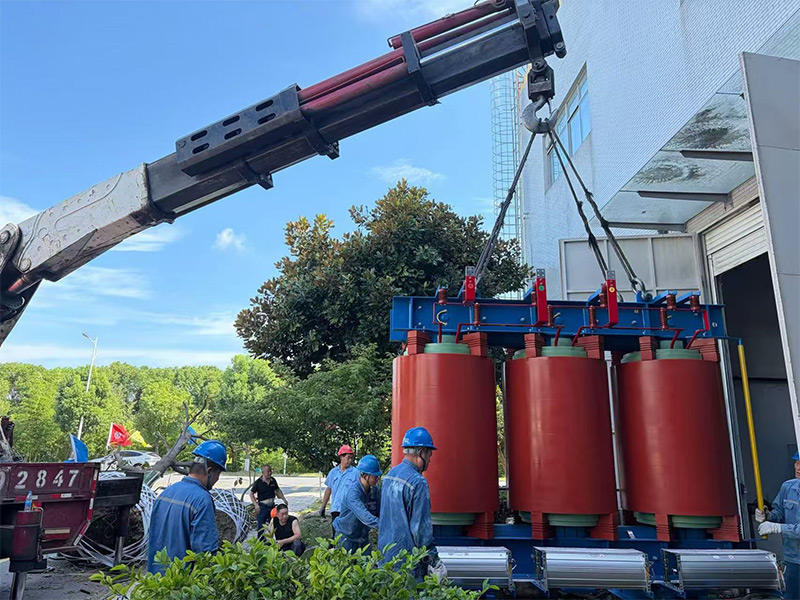

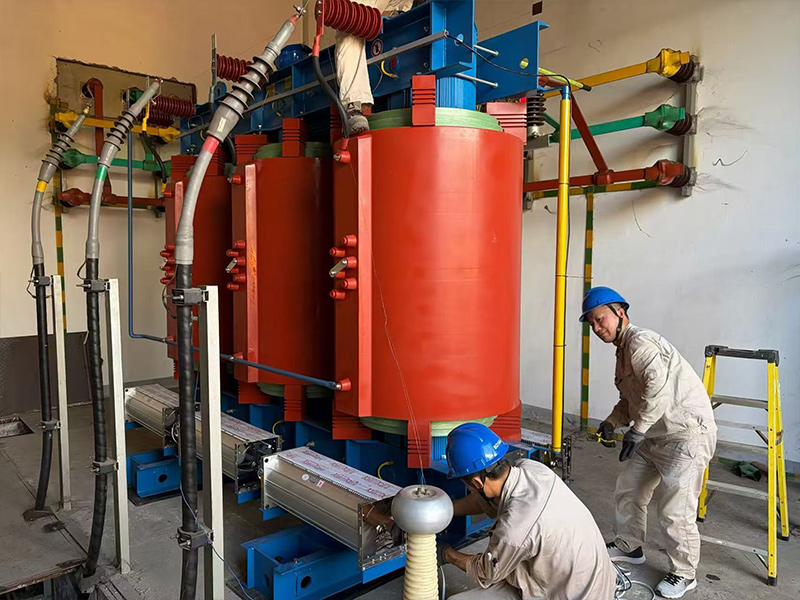

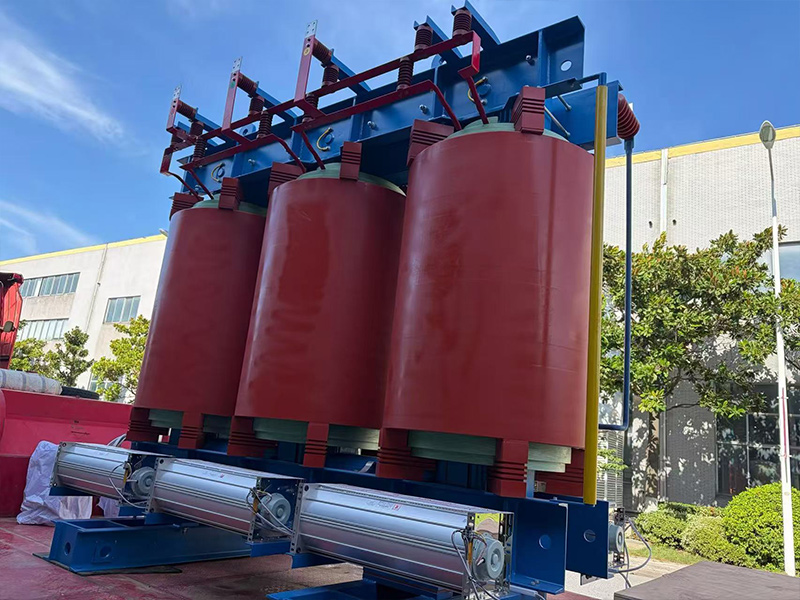

The 11kV cast-resin dry-type transformer is a core equipment for medium-voltage distribution systems. Utilizing a vacuum-cast epoxy resin insulation and air convection cooling design, it combines the benefits of being oil-free, eco-friendly, and highly flame-retardant with exceptional electrical stability. It is perfectly suited for 11kV distribution scenarios with strict safety requirements, such as industrial parks, commercial complexes, large hospitals, data centers, and high-precision manufacturing plants. Capable of operating reliably in standard climates (-25℃ to 40℃), it effectively meets the transmission and distribution needs of medium-capacity systems.

Core Parameters:

• Energy Efficiency: Tier 2 Efficiency (Complies with GB 20052-2024).

• Structure: Resin Cast Insulation + Air Convection Cooling (Fully enclosed, dustproof, moisture-proof).

• Warranty: 3-Year Standard Warranty.

Our 35kV dry-type transformers feature capacities ranging from 30kVA to 5000kVA. Utilizing epoxy resin casting, the SCB13 series is currently one of the most widely used energy-saving products for 35kV voltage grades. They ensure high safety, excellent environmental adaptability, and full compliance with the latest efficiency standards.

Core Parameters:

• Voltage Ratings: 35kV / 0.4kV (Customizable)

• Insulation Class: Class F (155℃) or Class H (180℃)

• Cooling Method: AN / AF

11kV/0.4kV, 1000kVA, Dyn11 connection, fully sealed and maintenance-free, compliant with IEC 60076 / ANSI standards.

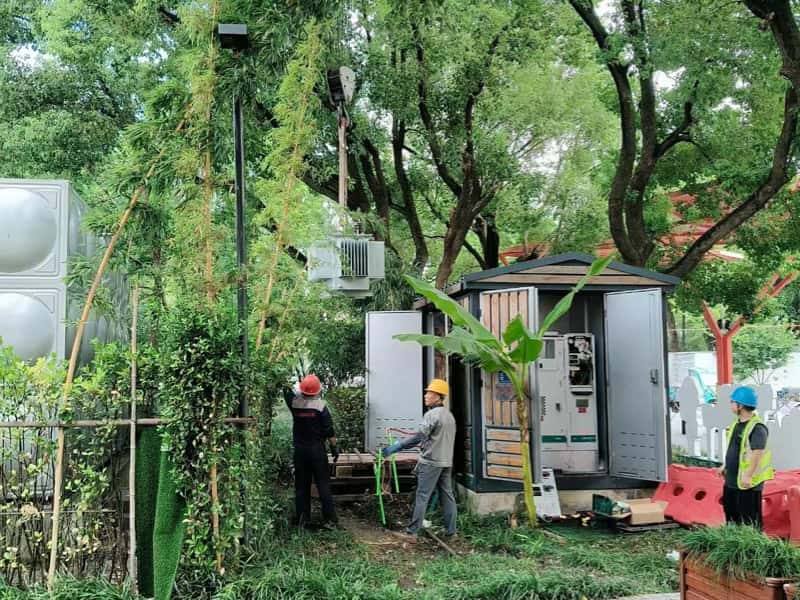

The 11kV 1000kVA compact substation is a factory-prefabricated, integrated outdoor packaged power distribution unit. It integrates high-voltage switchgear, a distribution transformer, low-voltage distribution panels, and protection and control systems into one or more enclosed housings. Featuring a compact structure, small footprint, fast installation, reliable operation, and maintenance-free performance, this 1000 kva compact substation is widely used in urban power grids, industrial parks, residential communities, commercial buildings, new energy power stations, and infrastructure projects. As a complete 11kv compact substation, it delivers the performance of a conventional indoor substation in a fully sealed, weather-resistant enclosure—eliminating the need for a dedicated building. The growing demand for rapid deployment and minimal site preparation has made compact substations a preferred solution for both utility-scale and distributed power distribution networks.

• Compact size, with only one-tenth of the footprint of a conventional substation

• Leak-proof oil design and maintenance-free operation

• Zero-maintenance design

• 3-year warranty

This compact packaged 33kV compact substation integrates high-voltage distribution, transformer step-down, and low-voltage distribution functions. With a rated capacity of 500 kVA, the 500 kVA compact substation has a small footprint and is well suited for urban grid expansion and upgrading projects as well as power distribution in industrial parks.

The 33kV 500kVA compact substation is a factory-prefabricated, integrated outdoor packaged power distribution unit designed for medium- and high-voltage distribution applications. It integrates 33kV high-voltage switchgear, an oil-immersed distribution transformer, low-voltage distribution equipment, protection and control systems, and auxiliary devices inside an enclosed housing, delivering the core advantage of “factory pre-assembly and rapid on-site commissioning.

• IP54 protection rating

• Stable operation in complex outdoor climates

• Zero-maintenance design

• 3-year warranty

The traction transformer is a highly specialized core equipment designed exclusively for electrified railways (high-speed rail, bullet trains, standard rail) and urban transit systems (subway, light rail). Traction transformers deliver stable power conversion under complex line operating conditions, and its primary function is to step down high-voltage grid power (110kV/220kV) to the precise voltage required by electric locomotives (27.5kV/55kV). Beyond voltage conversion, the traction power transformer achieves critical electrical isolation, phase transformation, and dynamic three-phase grid load balancing. Built to endure extreme, frequent short-circuit impacts and massive short-term overloads, it is the beating heart of modern transportation infrastructure.

Core Parameters:

• Rated Capacity: 10MVA ~ 63MVA (Supports 1.5x~2.0x short-term massive overload).

• Voltage Configuration: Grid side 110kV/220kV stepped down to Traction side 27.5kV/55kV.

• Special Vector Groups: V/v, Scott, YNvd, YNd11 optimized for transit load balancing.

The rectifier transformer is a heavy-duty special transformer engineered specifically to supply power to rectifying equipment (thyristors, diodes). Its primary function is to transform high or medium AC grid voltage into the precise AC voltage required by rectifier circuits to produce stable DC power. As a typical high voltage rectifier transformer, it achieves vital galvanic isolation, suppresses harmonic pollution via multi-pulse phase shifting, and aggressively resists DC bias saturation. Tailored for rigorous industrial operating conditions, the rectifier duty transformer is the indispensable power source for electrolysis, electroplating, massive DC drives, and high-power charging systems.

Core Parameters:

• Rated Capacity: 100kVA ~ 100MVA (Built to endure 1.2x~1.5x severe load impacts).

• Voltage Configuration: Grid side 10kV/35kV stepped down to precise operational LV (tens to hundreds of Volts).

• Special Vector Groups: Phase-shifting designs (e.g., 12-pulse, 24-pulse) for harmonic elimination.
