Operating electrical equipment at high altitudes presents two major physical challenges: reduced air density impairs cooling efficiency, and lower air pressure drastically reduces the air's insulation (dielectric) strength. We implement two critical manufacturing customisations to solve this:

1) Upgraded Insulation Clearances: Standard electrical clearances are designed for sea level. At 4000m, air breaks down much easier. We purposefully increase the physical creepage distance and air clearance between the high-voltage phases, and between the windings and the grounded core, ensuring no arcing occurs in the thin mountain air.

2) Enhanced Thermal Derating Design: Thinner air cannot carry heat away as effectively as dense air. If a standard transformer operates at high altitude, it will overheat. We utilize larger copper cross-sections to generate less heat initially and increase the surface area of the resin-cast cooling channels to compensate for the poor convection, guaranteeing the transformer runs cool and delivers its full rated capacity.

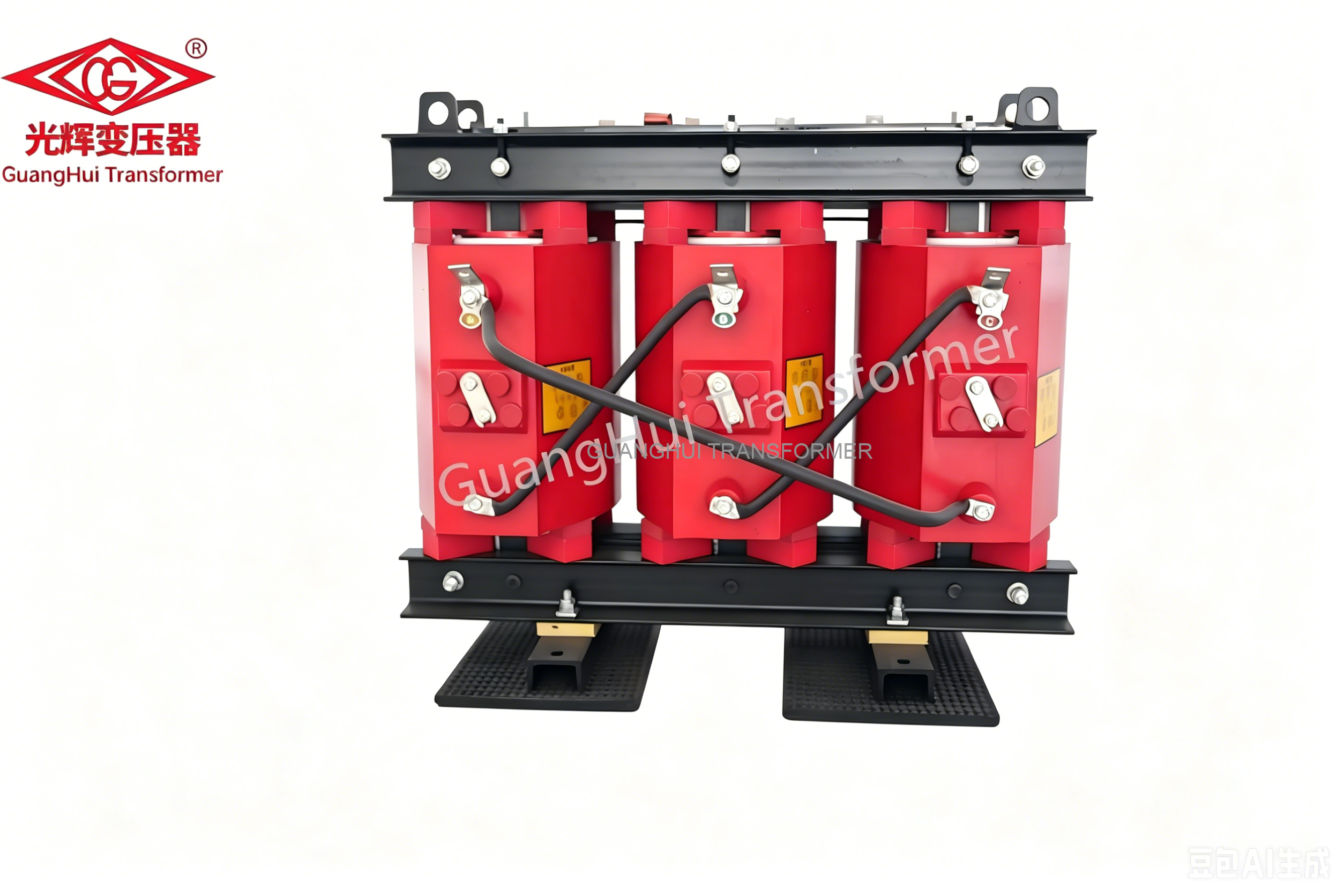

A cast resin dry type transformer uses epoxy resin insulation to protect the windings from moisture, dust, and environmental conditions. It offers reliable operation, low maintenance, and excellent fire safety.

Cast resin dry type transformers provide strong insulation, high mechanical strength, low maintenance requirements, and excellent resistance to moisture and pollution, making them suitable for demanding indoor and industrial applications.

They are commonly installed in commercial buildings, factories, hospitals, data centers, renewable energy systems, and other locations where safety, reliability, and low maintenance are important.

Selection should consider rated capacity, primary and secondary voltage, frequency, insulation class, cooling method, installation environment, temperature rise, and required protection level for the specific application.
