A solar pv transformer helps you turn the energy from the sun into electricity that powers your home or business. Think of it like a translator that changes solar energy into a form that your appliances understand. You depend on this device to make sure your lights, computers, and machines work safely. Changzhou Guanghui Transformer Manufacturing Co.,Ltd. offers advanced solutions that make your solar pv transformer reliable and efficient.
Imagine a solar pv transformer as a bridge that connects your solar panels to the devices you use every day.
Key Takeaways
A solar PV transformer converts solar energy into electricity that your home or business can use. It acts like a translator for energy.
The transformer steps up the voltage from your solar inverter to match the electric grid, ensuring safe and efficient energy flow.
It protects your solar system by keeping the inverter and grid separate, preventing issues during faults or power spikes.
High-quality solar PV transformers can last over 25 years, providing reliable power and reducing maintenance costs.
Choosing the right transformer type, like dry-type for indoor use, ensures safety and efficiency in your solar power system.
What is a solar pv transformer
Main Function
A solar pv transformer helps you connect your solar power system to the electric grid. You use it to change the voltage from your solar inverter to a level that matches the grid. This process is called "stepping up" the voltage. Without this step, the electricity from your solar panels would not travel far or safely reach your home or business.
Here is a simple table that shows the main functions and descriptions:
Function | Description |
|---|---|
Voltage Step-Up | Converts low-voltage output from the inverter to higher voltage for grid connection. |
Galvanic Isolation | Keeps inverter circuits separate from the utility for safety and fault management. |
Integration | Combines switchgear, protection, and metering for easier setup in power-station designs. |
You depend on the solar pv transformer to make sure your solar energy is safe and ready for use. It also protects your system by keeping the solar inverter and the utility grid separate. This helps prevent problems if there is a fault or issue in the grid.
Role in Solar Systems
You will find that a solar pv transformer plays a special role in solar power systems. Unlike regular transformers, it handles the unique way solar panels produce electricity. Solar energy changes throughout the day. The transformer manages these changes and keeps the voltage steady.
Here are some key roles:
Increases the low-voltage AC from your inverter to the higher voltage needed for the grid.
Prevents direct current (DC) from entering the grid, which keeps your system safe.
Handles changes in power when clouds pass or the sun sets.
Protects against temperature swings, corrosion, and other tough conditions.
Solar pv transformers make sure your solar power system works smoothly and safely. They help you get the most energy from your panels and keep your home or business powered all day.
How solar pv transformers work
Electricity Flow
You can think of a solar pv transformer as a key part of your solar power system. When sunlight hits your solar panels, they create direct current (DC) electricity. Your inverter changes this DC electricity into alternating current (AC), which is what most homes and businesses use. The electricity then flows into the solar pv transformer.
Here is how the electricity moves through your system:
The inverter takes the DC power from your solar panels and turns it into AC power.
The solar pv transformer receives this AC power and adjusts the voltage to match what the grid needs.
The transformer helps keep the energy flow steady and safe, making sure your electricity can travel long distances without losing too much power.
Tip: A solar pv transformer does more than just change voltage. It also protects your system by keeping the energy flow stable and reducing the risk of power spikes.
The transformer works in cycles. First, a controller activates a switch, letting current flow through one part of the transformer. This action creates a magnetic field and sends energy to the output. After a short pause, the controller switches to another part, reversing the flow and sending more energy out. This cycle repeats many times each second, keeping your electricity moving smoothly.
Voltage Change Process
The voltage change process is one of the most important jobs of a solar pv transformer. Your solar panels usually produce electricity at a lower voltage. The transformer steps up this voltage so it can travel through power lines and reach the grid safely.
Here is a simple table that shows how the voltage changes at each stage:
System Stage | Typical Voltage |
|---|---|
Solar panel string | 600V–1500V DC |
Inverter output | 400V–800V AC |
Collector system | 11kV–35kV |
Transmission grid | 66kV–500kV |
You start with low-voltage DC from your panels. The inverter changes this to medium-voltage AC. The solar pv transformer then increases the voltage even more, making it high enough for the collector system and the main grid. This process helps reduce energy loss and keeps your electricity safe as it travels.
A solar pv transformer also manages voltage spikes and keeps the power quality high. By regulating the voltage, it protects your equipment and helps prevent outages. You can rely on this process to make sure your solar energy is always ready and safe to use.
Solar pv transformer features
Key Components
When you look inside a solar pv transformer, you find several important parts that help it work safely and efficiently. Each part has a special job:
Windings: These coils of wire carry the electric current and help change the voltage.
Core: Made from grain-oriented steel, the core guides the magnetic field and boosts energy transfer.
Insulation system: Durable insulation, such as kraft paper and pressboard, keeps the windings safe from heat and electrical faults. Some transformers use vegetable ester fluid, which is safer and helps prevent fires.
Transformer oil or resin: This material cools the transformer and adds another layer of insulation. In dry-type transformers, epoxy resin provides fire resistance and keeps the unit maintenance-free.
Protective enclosures: These cases shield the transformer from dust, moisture, and animals. Strong coatings protect against UV rays and corrosion.
Note: A strong insulation system extends the life of your transformer and reduces the risk of outages.
You also benefit from features like electromagnetic shielding, which helps block unwanted electrical noise, and heavy-duty windings that handle sudden power surges.
Load Regulation and Efficiency
A solar pv transformer must handle changes in sunlight and power demand throughout the day. Wide-range load regulation lets your transformer adjust to these changes without wasting energy. This means you get steady power, even when clouds pass or the sun sets.
High efficiency is key. Many modern transformers reach efficiency levels above 98%. This reduces energy loss and saves you money.
Ultra-low loss designs keep no-load losses below 0.8% and load losses below 1.2%. You get more usable energy from your solar panels.
Advanced insulation and cooling systems allow the transformer to run cooler, which slows down aging and keeps it working longer.
Special coatings and sealed enclosures help your transformer survive harsh weather, high humidity, and even sandstorms.
Feature | Benefit |
|---|---|
Wide-range load regulation | Stable power during changing sunlight |
Anti-corrosion coatings | Long service life in tough environments |
Intelligent voltage control | Protects your devices and the grid |
Fire-resistant insulation | Safer operation, especially indoors |
You can trust a well-designed transformer to deliver reliable power for over 25 years, even in extreme conditions. This makes it a smart choice for both rooftop and ground-mounted solar projects.
Types of solar pv transformers
Common Types
You will find several types of transformers used in solar power systems. Each type has a special design for different needs and locations.
Dry Type Transformers: You can use these in indoor or fire-sensitive places. They use air or resin for cooling, so you do not need oil. This makes them safe and easy to maintain.

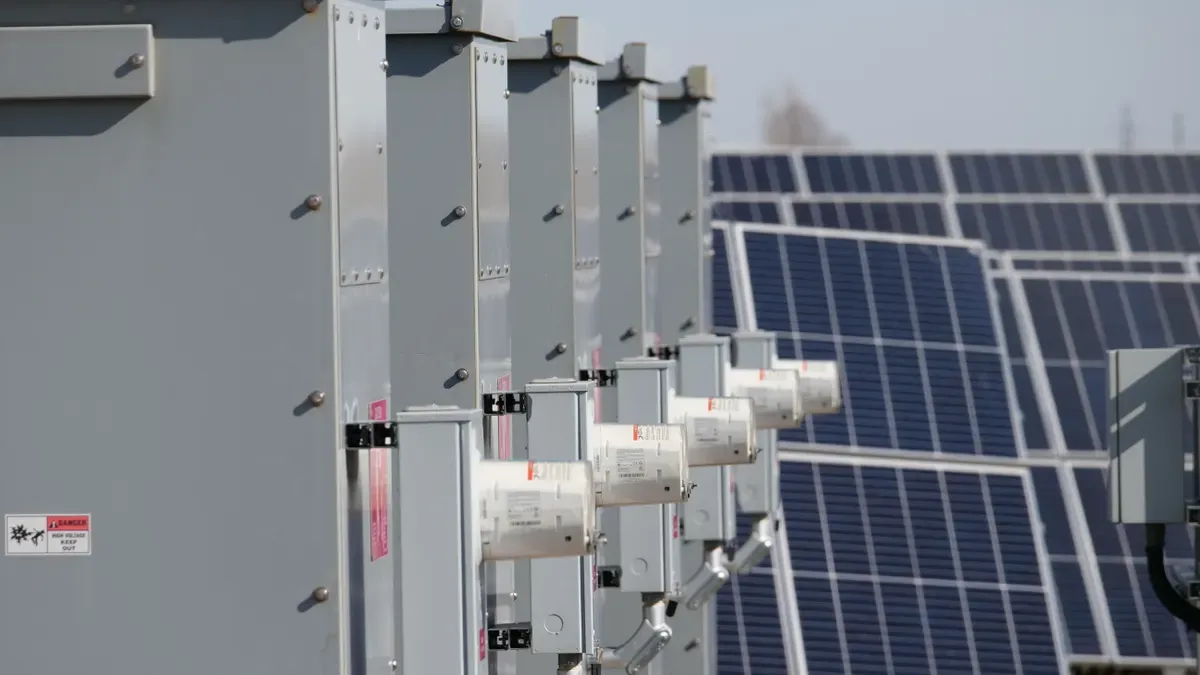

Pad Mounted Transformers: You often see these in outdoor areas. They come in secure, compact boxes that protect them from weather and tampering.

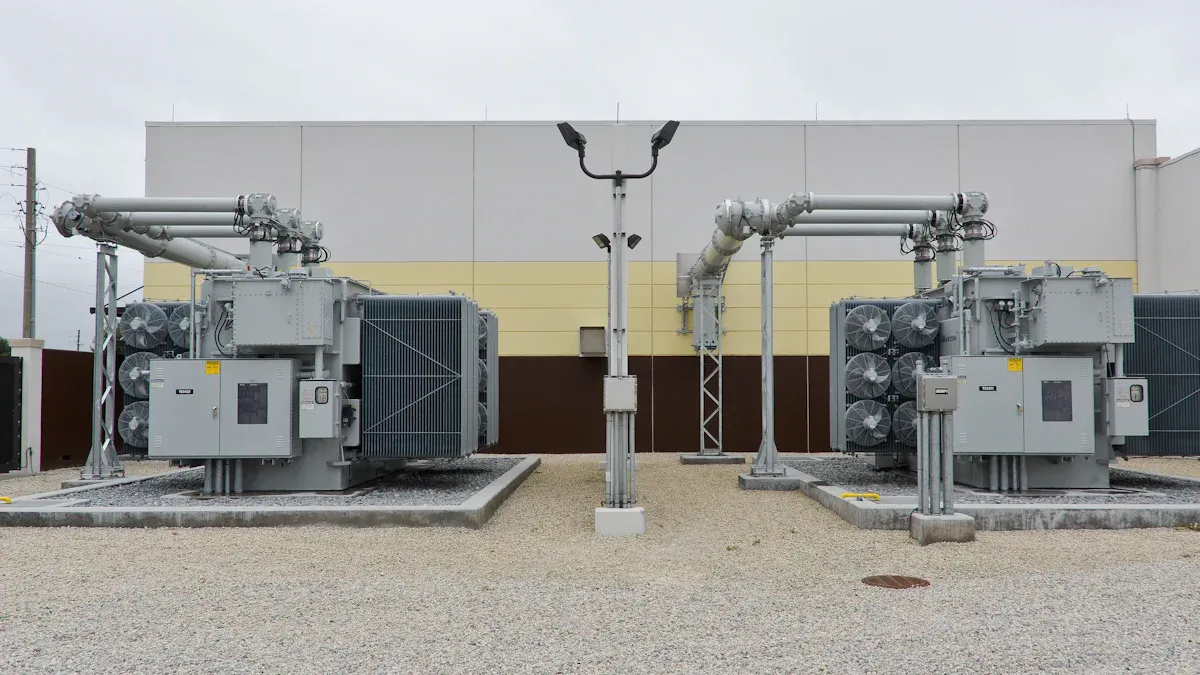

Oil Immersed Transformers: These work well in large outdoor projects. They use oil for cooling, which helps them handle high power and last a long time.
Prefabricated Substation Transformers: You can install these quickly in modular stations. They combine several functions in one unit.
Dual-Split Transformers: These suit high-capacity systems and places where moving large equipment is hard.
Tip: Dry-type transformers are popular in renewable energy because they are safe, eco-friendly, and need little maintenance.
Here is a table to help you compare dry-type and oil-immersed transformers:
Parameter | Dry-Type Transformer | Oil-Immersed Transformer |
|---|---|---|
Cooling Medium | Air or resin | Mineral or ester oil |
Fire Risk | None | Moderate |
Maintenance | Minimal | Regular oil checks |
Installation | Indoor/outdoor | Outdoor only |
Initial Cost | Higher | Lower |
The SCB14 Series Resin-Insulated Dry-Type Transformer stands out for rooftop and indoor solar systems. You can install it in small spaces. It offers high reliability, easy deployment, and flexible installation. Its fire-resistant design makes it safe for buildings.
Application Scenarios
You will see solar pv transformers in many real-world projects. In utility-scale solar farms, you need transformers to step up the voltage for long-distance transmission. This ensures your solar energy reaches the grid efficiently.
For rooftop and indoor systems, like the Jiangnan Global Harbor Distributed PV Project, dry-type transformers such as the SCB14 Series provide safe and reliable operation. You can count on these transformers for excellent overload capacity and long service life, even in tough environments.
Application Type | Description |
|---|---|
Utility-Scale Projects | Step up voltage for efficient grid integration and long-distance power transmission. |
Rooftop/Indoor Systems | Use compact, fire-resistant transformers for safe, reliable energy in buildings and offices. |
You can choose the right solar pv transformer based on your project’s size, location, and safety needs.
Why solar pv transformers matter
Grid Compatibility
You need your solar power system to work smoothly with the electric grid. A solar pv transformer helps you achieve this goal. It changes the voltage from your solar panels to match what the grid requires. This process keeps energy flowing steadily and safely.
Here is a table that shows how a transformer supports grid compatibility:
Role | Description |
|---|---|
Transform Power | Change voltage levels for transmission and end use. |
Regulate Power | Control power flow, voltage, and system stability. |
Condition Power | Maintain waveform quality and compatibility for reliable operation. |
You also benefit from features like Low-Voltage Ride-Through and Frequency Ride-Through. These features help your system stay online during brief voltage drops or frequency changes. As more solar systems connect to the grid, you need smarter equipment to handle these challenges. A solar pv transformer makes sure your energy fits into the grid without causing problems.
Note: Transformers play a key role in reducing energy losses during transmission. High-quality transformers can lower these losses, which improves the efficiency of your entire system.
Power Quality and Safety
You want your solar power to be safe and reliable. A transformer helps you manage voltage changes and keeps your power quality high. Solar energy can cause voltage swings, harmonic distortion, and unbalanced currents. These issues can damage equipment and increase costs.
Fluctuating voltage levels can disrupt the stability of your power supply.
Harmonic distortion may lead to overheating and operational problems.
Voltage unbalance can cause extra wear on motors and other devices.
A transformer controls these risks by balancing voltage, filtering out unwanted signals, and protecting your equipment. You get steady, clean power for your home or business. This protection keeps your system running longer and reduces maintenance needs.
Tip: The right transformer helps you avoid outages and keeps your solar investment safe.
You depend on solar PV transformers to make solar energy efficient and reliable. These devices step up voltage, provide electrical isolation, and keep power flow stable:
Function | Description |
|---|---|
Steps up voltage | Raises inverter output for grid supply |
Provides electrical isolation | Keeps the inverter and grid safely separated |
Maintains stable power flow | Delivers consistent and reliable energy |
Quality matters. You protect your investment and avoid costly outages when you choose advanced, durable transformers. A strong design can save you millions and keep your solar project running for years.
FAQ
What does a solar PV transformer do?
You use a solar PV transformer to change the voltage from your solar panels. This helps your electricity match the grid. It also keeps your system safe and reliable.
How long does a solar PV transformer last?
You can expect a quality solar PV transformer to last over 25 years. Good insulation, strong enclosures, and anti-corrosion coatings help extend its service life.
Can you use a solar PV transformer indoors?
Yes, you can use dry-type transformers like the SCB14 Series indoors. These units are fire-resistant, low-noise, and safe for buildings or offices.
Why is load regulation important in solar PV transformers?
Load regulation helps your transformer handle changes in sunlight. You get steady power even when clouds pass or the sun sets. This feature reduces energy waste and protects your equipment.
